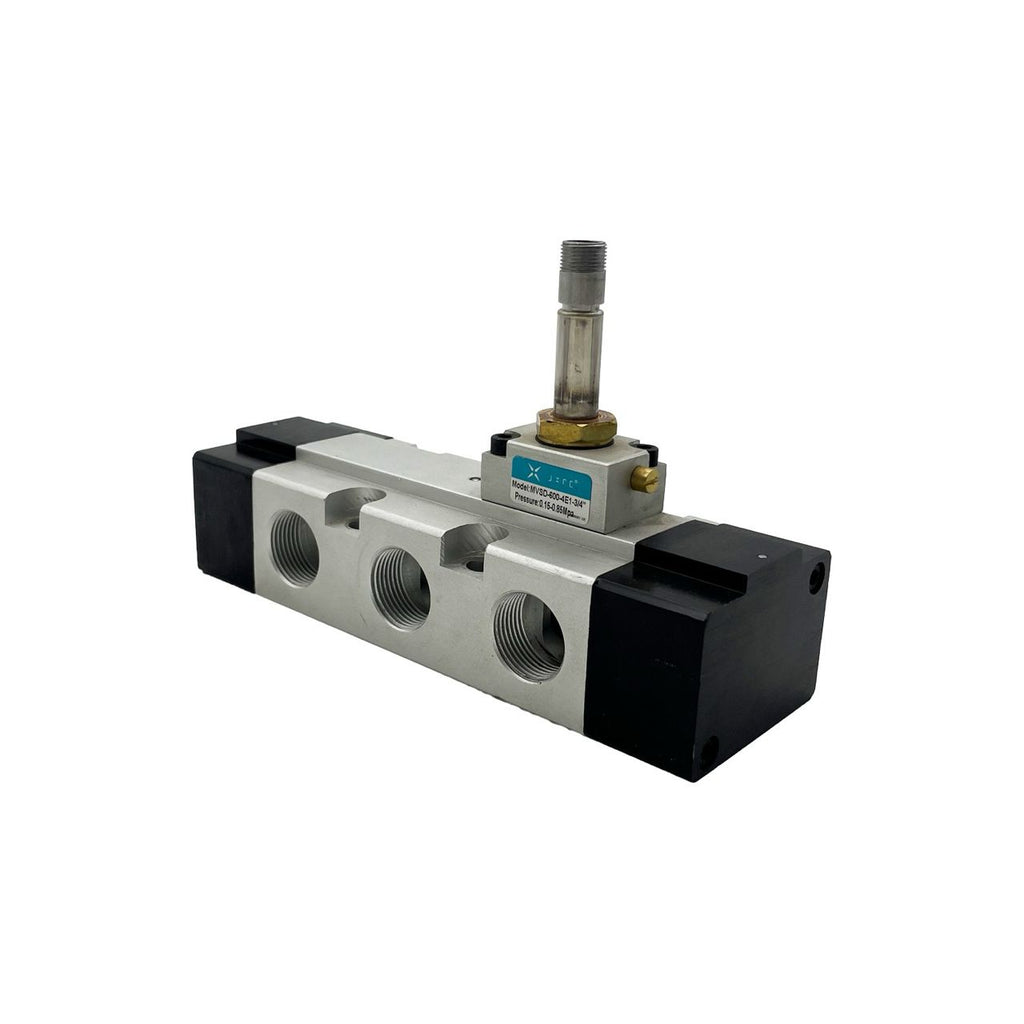

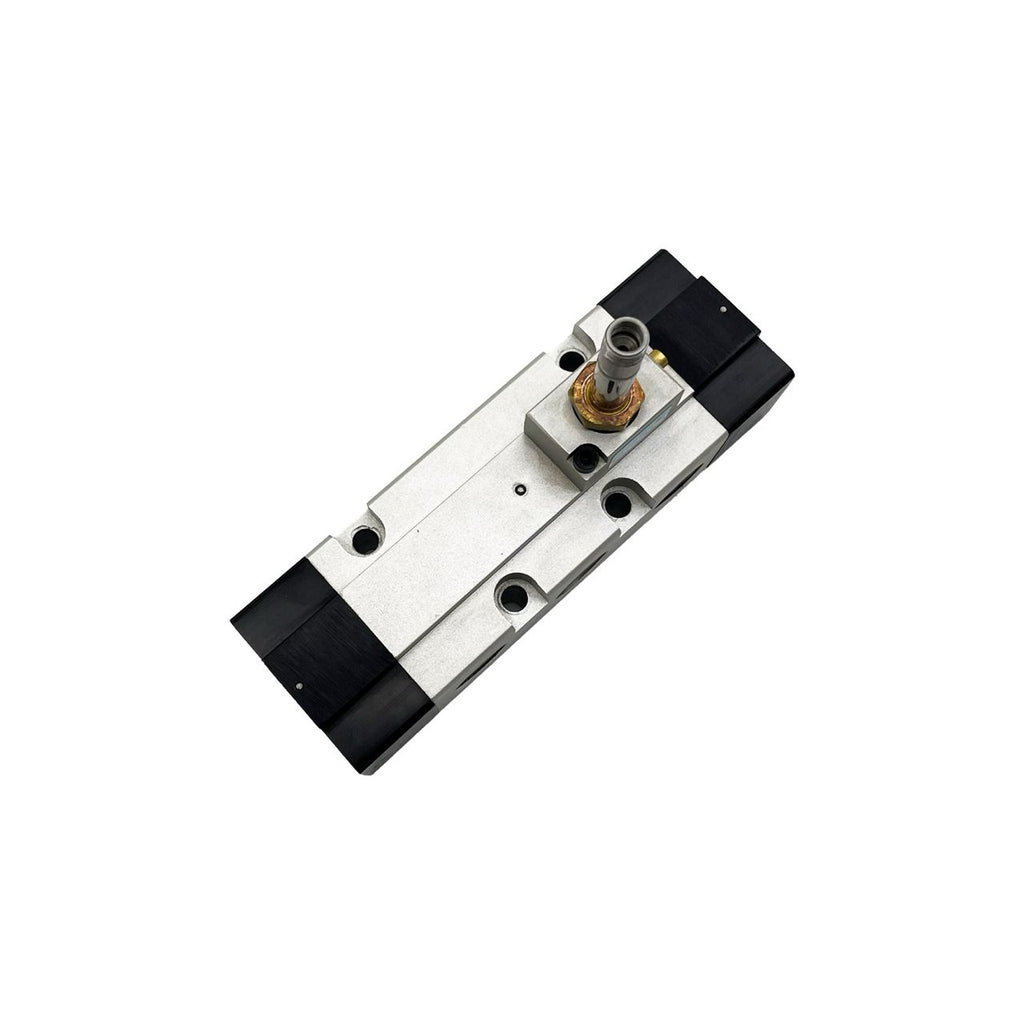

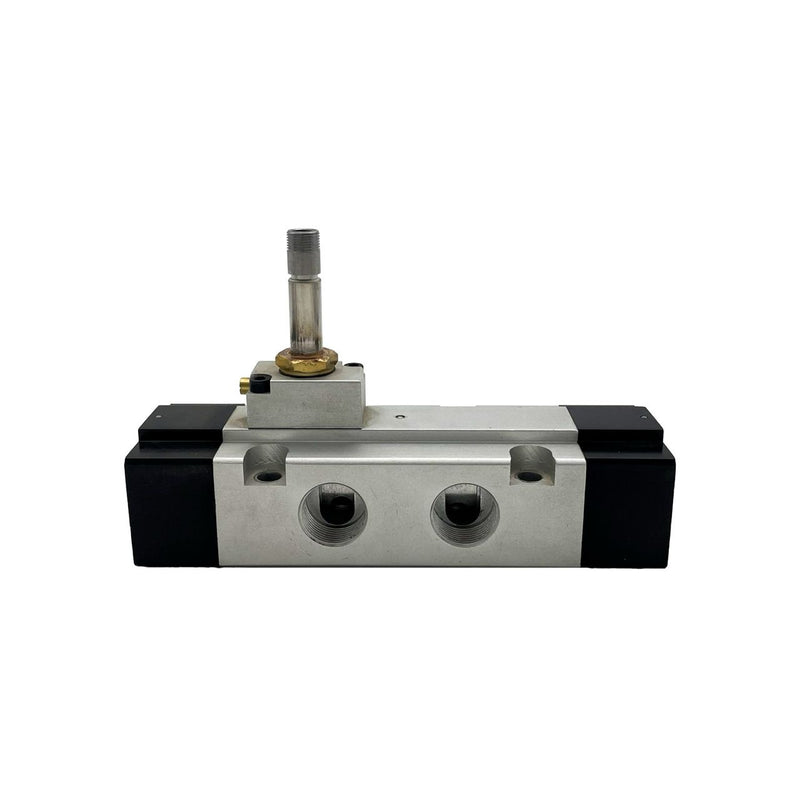

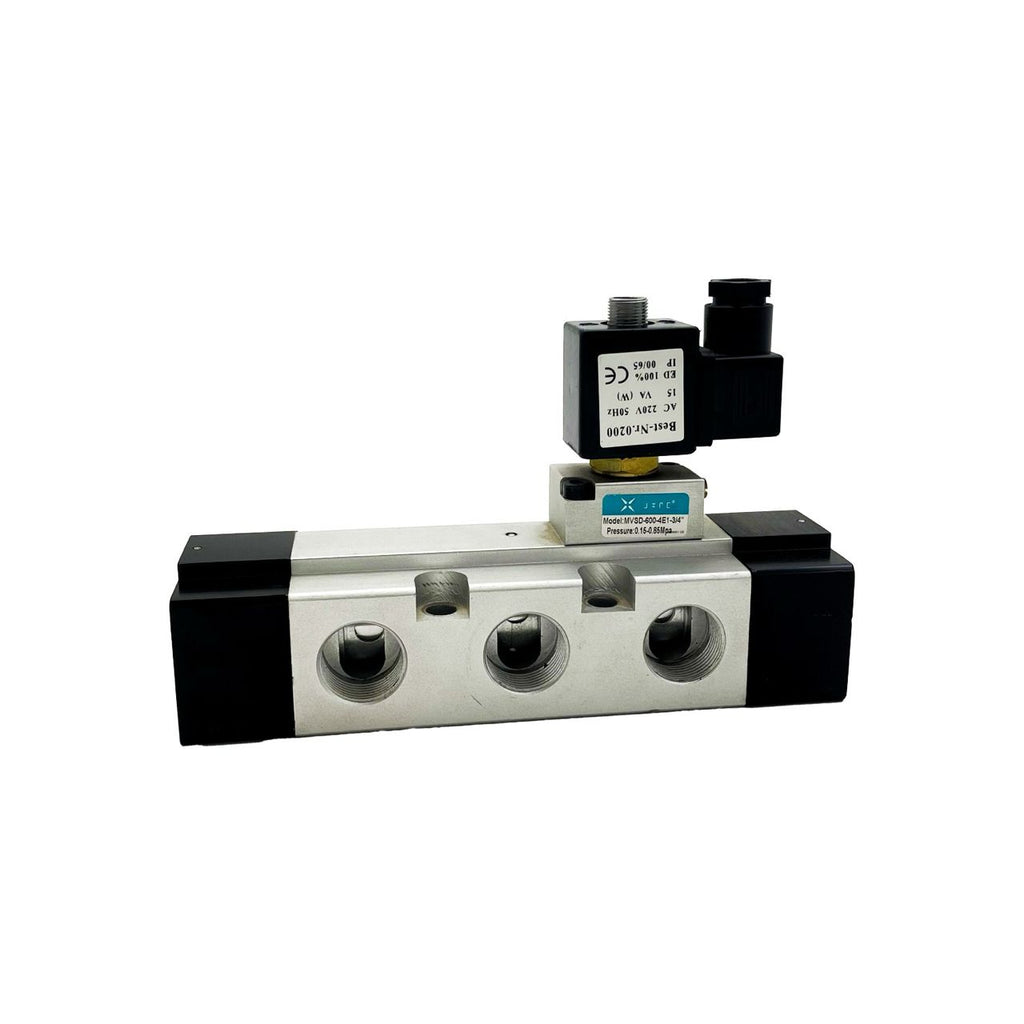

5/2 Solenoid Valve with 1 Single Coil 220 AC - model : MVSD

• Type: 5/2 Solenoid Valve (5 ports – 2 positions)

• Operation:

  • Air enters from one inlet port.

  • The valve shifts between two positions (on/off or direction change).

  • Air exits through either the working port or exhaust

Movement: Two positions – ON/OFF or change of direction.
Return: Automatically returns to the initial position by a spring when the coil is de-energized..

Valve Port Identification Guide:
A: Air outlet
B: Air outlet
P: Air inlet (pressure)
R / S: Exhaust ports

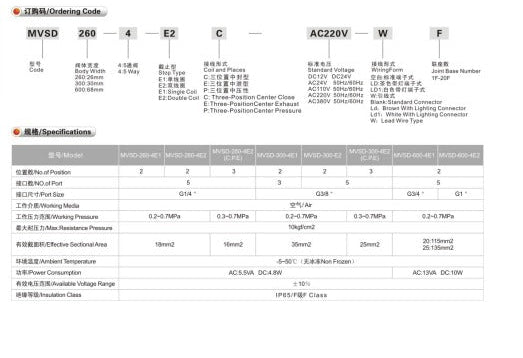

• Maximum Operating Pressure: 0.2 - 0.7 MPA

• Operating Temperature:  50 °C

Applications:

It is used in large-scale air systems to allow a high volume of airflow.

• • Pneumatic systems

  • Controlling pneumatic cylinders

  • High-pressure industrial automation
