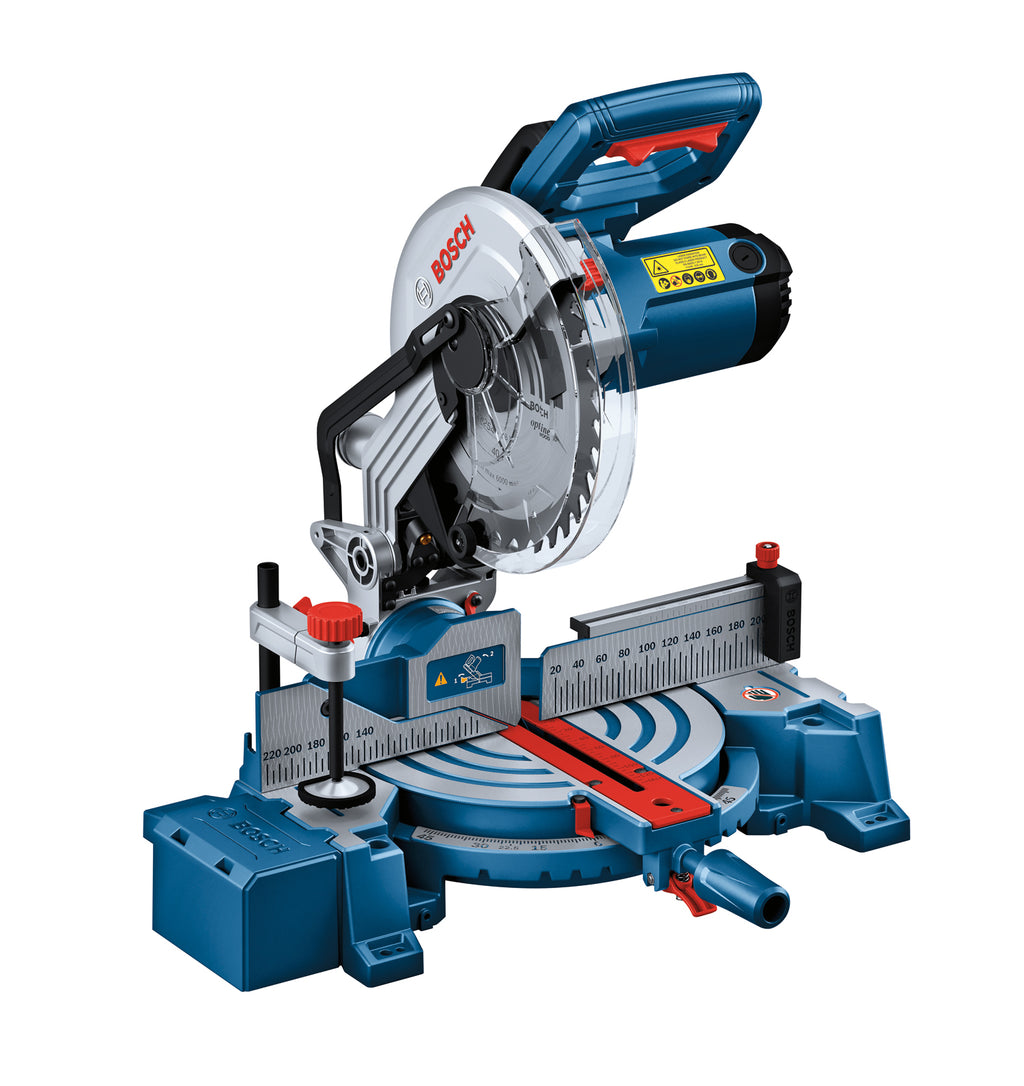

Make accurate cutting easier and more consistent with the tough professional miter saw.
- Accuracy for consistent cuts from the highly visible direct laser guide
- More stable cutting thanks to the detachable box extension
- Length gauge ensures easier repetitive cuts
-
Scope of Delivery
1 x circular saw blade, Optiline Wood, 254 x 2.8/1.8 x 30 mm, 40 (2 608 640 443)
Supporting box (1 619 PB9 050)
Dust bag (1 619 PB6 246)
Technical Data :
Mitre setting : 47 ° L / 52 ° R
Mitre setting, left : 47.0 °
Mitre setting, right : 52.0 °
Tool dimensions (width x length x height) : 477 x559 x567 mm
No-load speed : 5,000 rpm
No-load speed, up to : 5,000.0 rpm
Bevel setting : 45 ° L / 0 ° R
Incline setting, on the left : 45.0 °
Bevel setting, right : 0.0 °
Saw blade bore diameter : 30.0 mm
Saw blade diameter : 254.0 mm
Cutting capacity, 0° : 90 x 130 mm
Cutting capacity at 0°, width : 130.0 mm
Cutting capacity at 0°, height : 90.0 mm
Cutting capacity, 45° mitre : 90 x 91 mm
Cutting capacity at 45° mitre, width : 91.0 mm
Cutting capacity at 45° mitre, height : 90.0 mm
Cutting capacity, 45° bevel : 60 x 130 mm
Cutting capacity at 45° bevel, width : 130.0 mm
Cutting capacity at 45° bevel, height : 60.0 mm
Sound pressure level : 97.0 dB(A)
Noise level : The A-rated noise level of the power tool is typically as follows: Sound pressure level 97 dB(A); Sound power level 109 dB(A). Uncertainty K= 3 dB.
Sound power level : 109.0 dB(A)
Positioning (Headline emotional) (BE) : Long-lasting accuracy in every cut.
Gross Weight : 14.300 kg
Country of origin : China
