Description

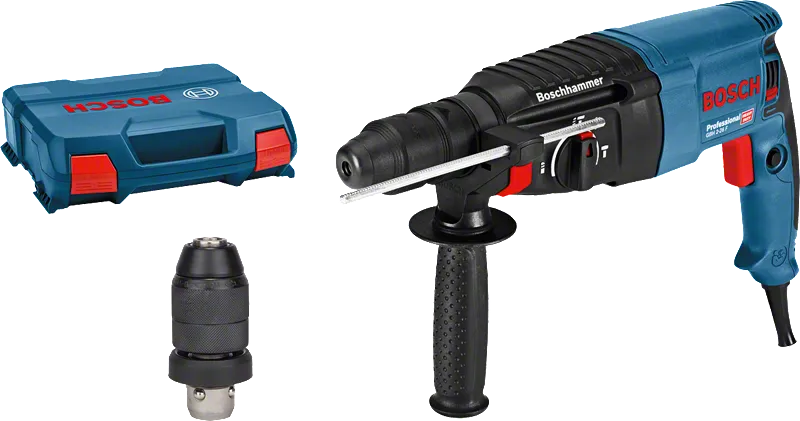

- GBH 2-26 F PROFESSIONAL
- ROTARY HAMMER WITH SDS PLUS
- Fast all-rounder for daily use
- Improved performance for a fast drilling rate and high chiseling removal rate
- Reliable and robust with long lifetime due to high-quality components
- Wide range of applications for drilling, hammer drilling, and chiselling
- TECHNICAL DATA
Performance data
Impact rate at rated speed 0 – 4,000 bpm
Rated speed 0 – 900 rpm
Additional data
Rated input power 830 W
Impact energy (according to EPTA 05/2016) 2.7 J
Tool holder SDS plus
Drilling range
Drilling dia. concrete, hammer drill bits 4 – 26 mm
Opt. appl. range concrete, hammer drill bits 8 – 16 mm
Drilling diameter in concrete with core cutters 16 – 68 mm
Max. drilling diameter masonry, core cutters 68 mm
Max. drilling diameter in metal 13 mm
Max. drilling diameter in wood 30 mm
Total vibration values (Hammer drilling in concrete)
Vibration emission value ah 15.3 m/s²
Uncertainty K 1.5 m/s²
Hammer drilling in concrete
Vibration emission value ah 15.3 m/s²
Uncertainty K 1.5 m/s²
Total vibration values
Vibration emission value ah 11.5 m/s²
Uncertainty K 1.5 m/s²
Composition:
Auxiliary handle (2 602 025 141)
Carrying case
Depth stop 210 mm (1 613 001 010)
Machine cloth
Quick change chuck 13 mm (2 608 572 212)
SDS plus quick-change chuck (2 608 572 213)
