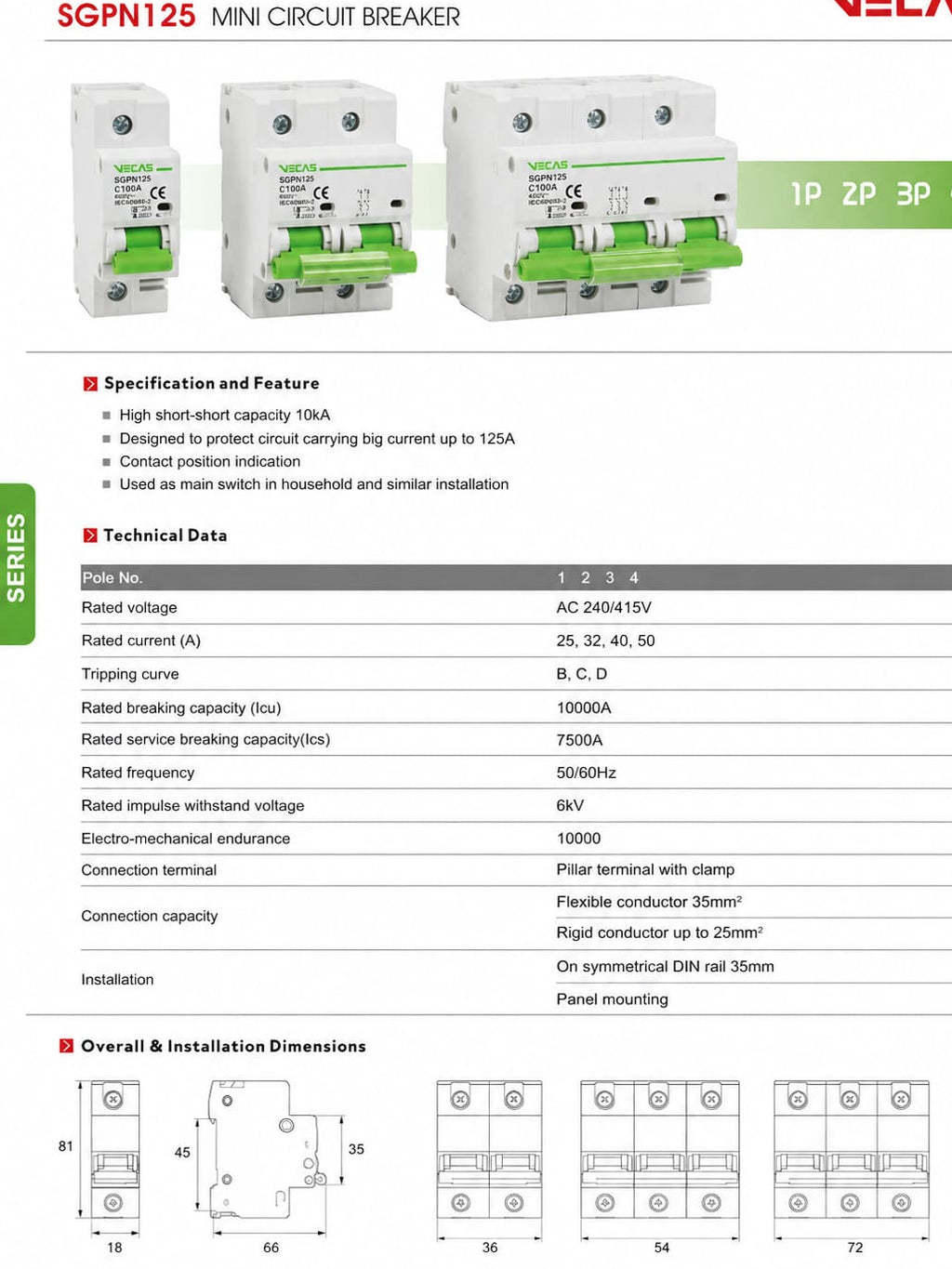

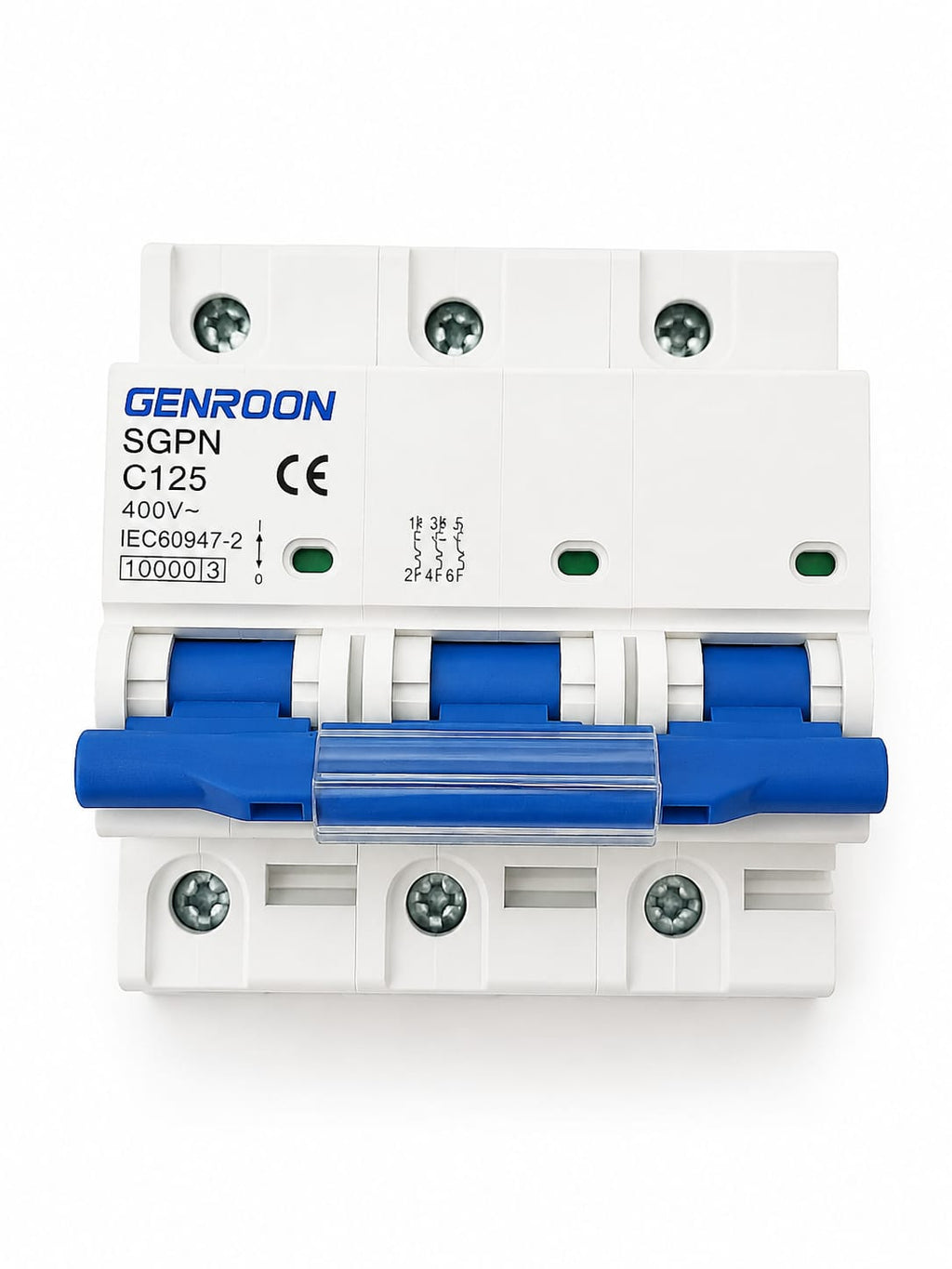

Description
- High short-short capacity 10kA
- Designed to protect circuit carrying big current up to 125A
- Contact position indication
- Used as main switch in household and similar installation
Technical Data
| Pole No. | 3 |
|---|---|
| Rated voltage | AC 240/415V |
| Rated current (A) | 25, 32, 40, 50 |
| Tripping curve | B, C, D |
| Rated breaking capacity (Icu) | 10000A |
| Rated service breaking capacity (Ics) | 7500A |
| Rated frequency | 50/60Hz |
| Rated impulse withstand voltage | 6kV |
| Electro-mechanical endurance | 10000 |
| Connection terminal | Pillar terminal with clamp |
| Connection capacity | Flexible conductor 35mm² |
| Rigid conductor up to 25mm² | |
| Installation | On symmetrical DIN rail 35mm |
| Panel mounting |
