Description

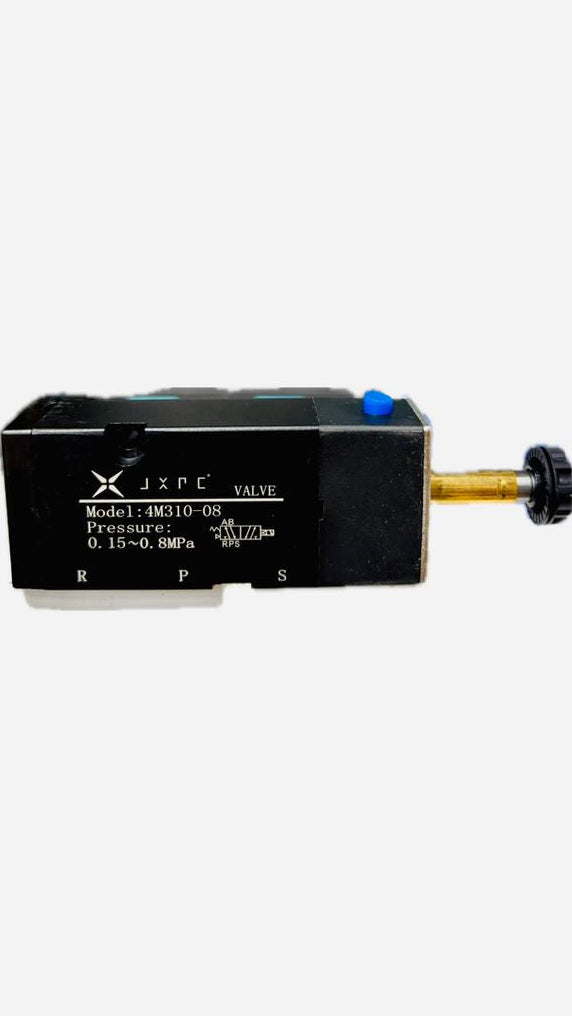

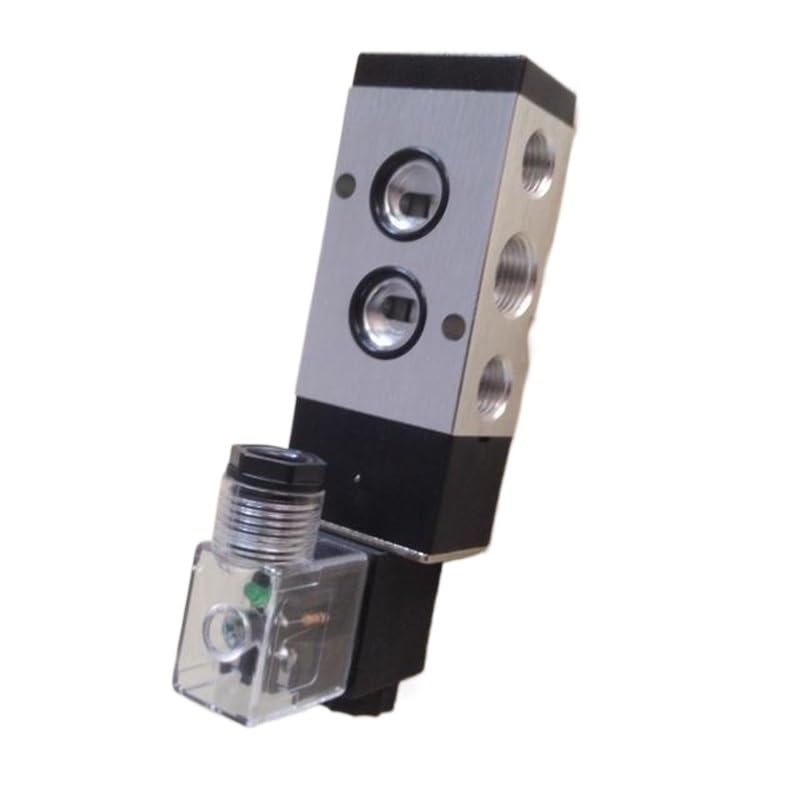

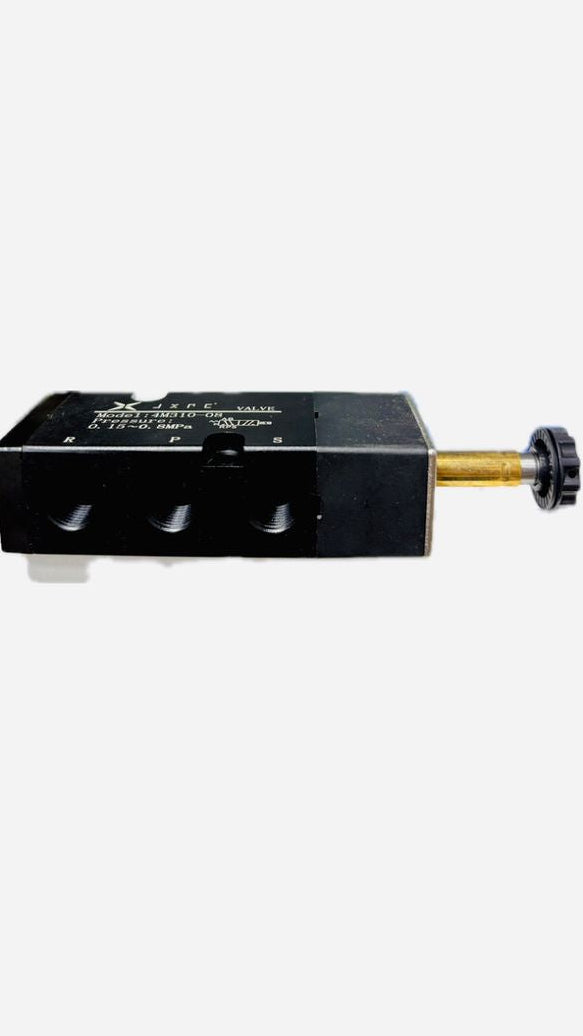

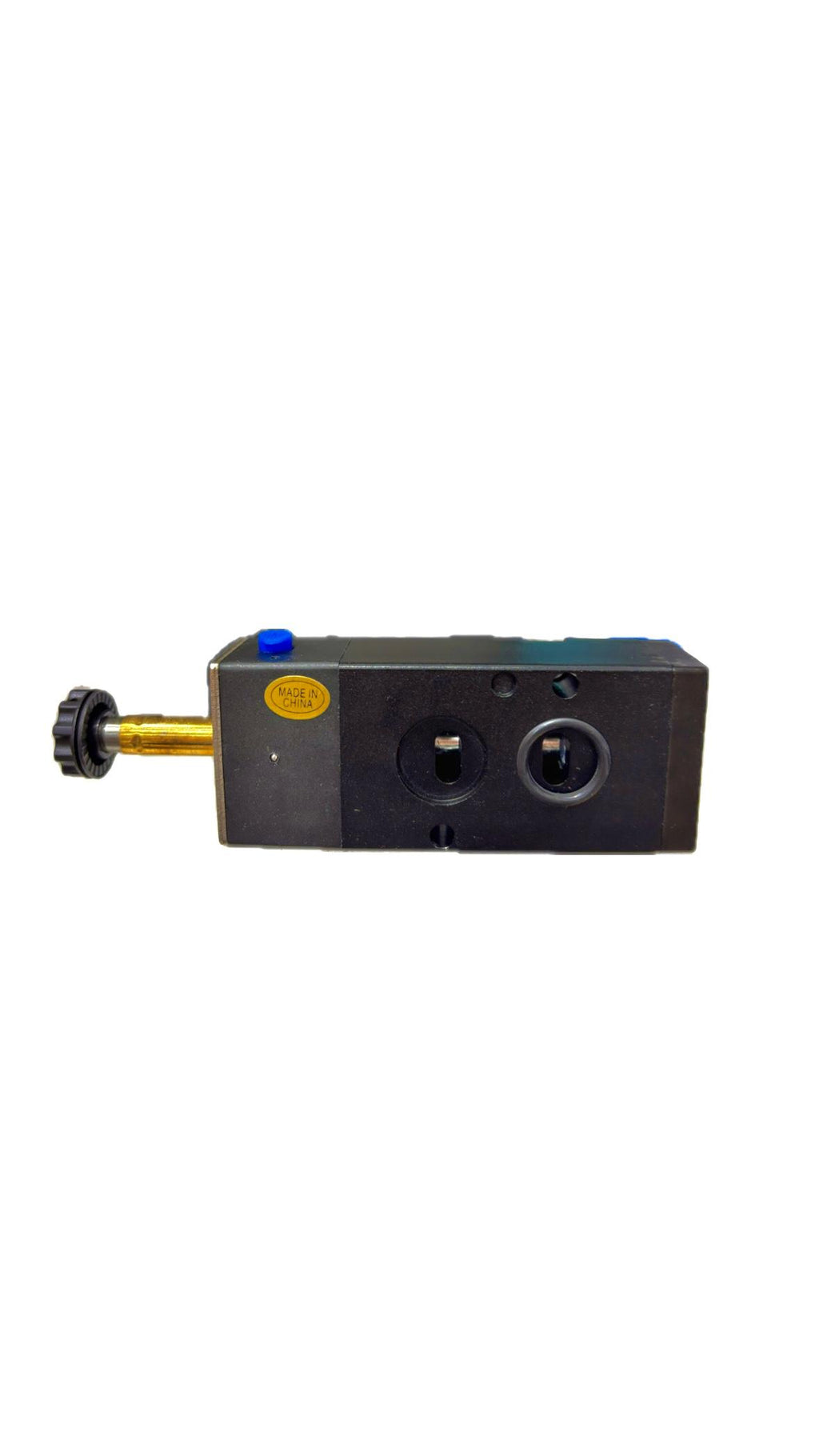

Type: Namur Solenoid Valve Used for controlling the pneumatic actuator.
Medium: Filtered compressed air
Function: 5 Way / 2 Position (5/2).
Electrical Control: Supports a single coil (one electrical signal)
Body Material: Metal
Internal pilot
Operating Pressure Range: 1.5 to 8 Bar
Operating Temperature: -5 ~ 60 °C
it is mounted on the side panel with the surface facing upward and fixed using two bolts without threading. It can be directly connected to the actuator. Both the valve and the actuator are equipped with O-ring sealing ports to ensure tight sealing and prevent leakage. It is also provided with a manual override device to facilitate installation and adjustment
Brand name: STNC & JXPC & E.MC. AIRFIT.
Country of manufacture: Made in China
coil sold separately for purchase :
https://derhali.com/en/products/pneumatic-solenoid-coil?_pos=1&_sid=c71a12288&_ss=r
