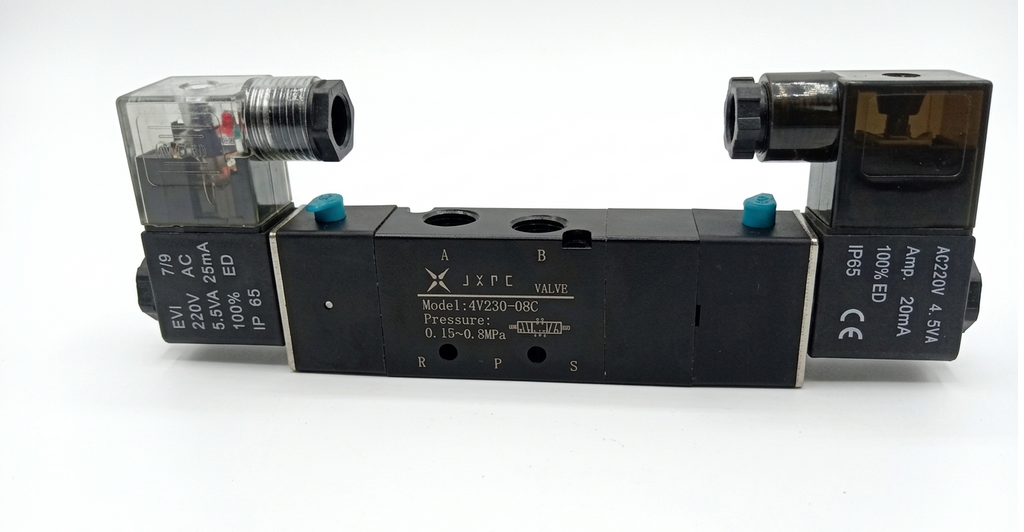

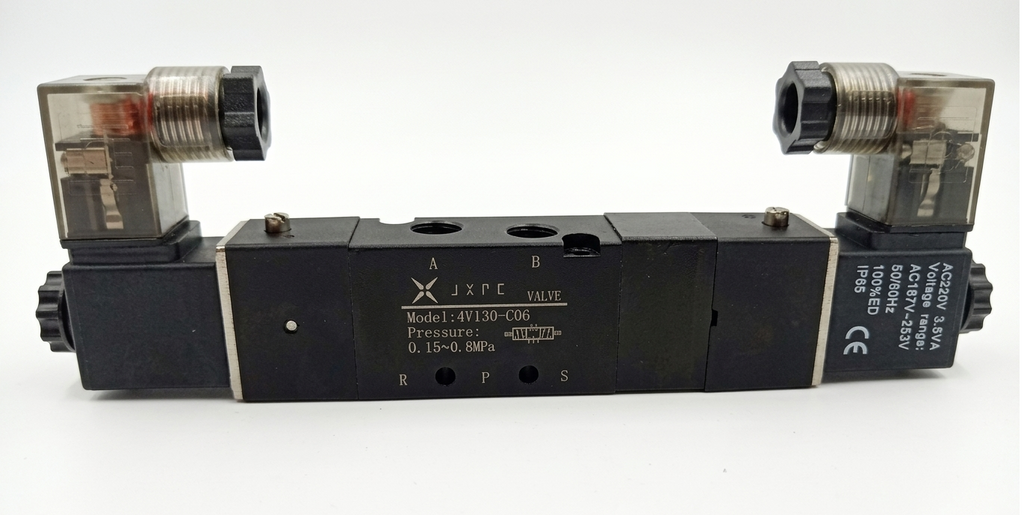

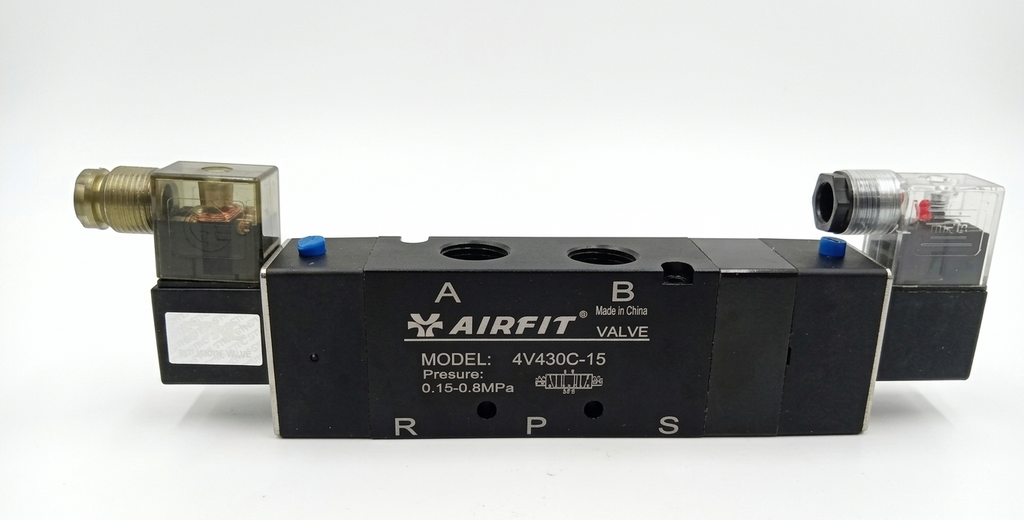

Pneumatic Solenoid Valve, 5 Way 3 Position (5/3), Closed Center, Body Only (Without Coils) Model - 4V
Pneumatic Solenoid Valve, 5 Way 3 Position (5/3), Closed Center, Body Only (Without Coils) Model - 4V
Pneumatic Solenoid Valve, 5 Way 3 Position (5/3), Closed Center, Body Only (Without Coils) Model - 4V
Roll over image to zoom in Click on image to zoom
Pneumatic Solenoid Valve, 5 Way 3 Position (5/3), Closed Center, Body Only (Without Coils) Model - 4V
Pneumatic Solenoid Valve, 5 Way 3 Position (5/3), Closed Center, Body Only (Without Coils) Model - 4V
Pneumatic Solenoid Valve, 5 Way 3 Position (5/3), Closed Center, Body Only (Without Coils) Model - 4V

Pneumatic Solenoid Valve, 5 Way 3 Position (5/3), Closed Center, Body Only (Without Coils) Model - 4V

Derhali
Size: 1/8
Price:
EGP 0.00

Description

Type:  Solenoid Valve Closed  Centre
Medium: Filtered compressed air
Function: 5 Way / 3 Position (5/3).
Electrical Control: Supports dual coils (two electrical signals)
Valve Port Identification:
A: Air outlet
B: Air outlet
P: Air inlet
R / S: Overflow
Body Material: Metal
Internal pilot
Operating Pressure Range: 1.5 to 8 Bar
Operating Temperature:  -20 ~ 70 °C
Brand name:  STNC & JXPC & E.MC. AIRFIT.
Country of manufacture: Made in China
coil sold seperately for purchase :
https://derhali.com/en/products/pneumatic-solenoid-coil?_pos=1&_sid=c71a12288&_ss=r
