| Range |
Acti9 |
| Product or component type |

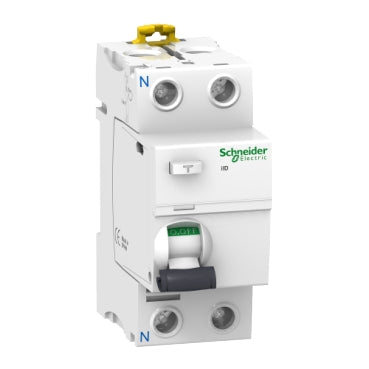

Residual current circuit breaker (RCCB) |
| poles description |
2P |
| Neutral position |
Left |
| [In] rated current |
25 A |
| network type |
AC |
| Earth-leakage sensitivity |
30 mA |
| Earth-leakage protection time delay |
Instantaneous |
| Earth-leakage protection class |
Type AC |
| Device location in system |
Outgoer |
| network frequency |
50/60 Hz |
| [Ue] rated operational voltage |
220…240 V AC 50/60 Hz |
| Residual current tripping technology |
Voltage independent |
| Rated breaking and making capacity |
Idm 1500 A |
| Im 1500 A |
| Rated conditional short-circuit current |
10 kA |
| [Ui] rated insulation voltage |
500 V AC 50/60 Hz |
| [Uimp] rated impulse withstand voltage |
6 kV |
| Surge current |
250 A |
| Contact position indicator |
Yes |
| Control type |
Toggle |
| mounting mode |
Clip-on |
| mounting support |
DIN rail |
| 9 mm pitches |
4 |
| Height |
91 mm |
| Width |
36 mm |
| Depth |
73.5 mm |
| Net weight |
0.21 kg |
| Colour |
White |
| Mechanical durability |
20000 cycles |
| Electrical durability |
AC-1: 15000 cycles |
| Locking options description |
Padlocking device |
| Connections – terminals |
Single terminal top or bottom 1…35 mm² rigid |
| Single terminal top or bottom 1…25 mm² flexible |
| Single terminal top or bottom 1…25 mm² flexible with ferrule |
