| Main |
| Range of product |
Easy Harmony XA2 |
| Product or component type |

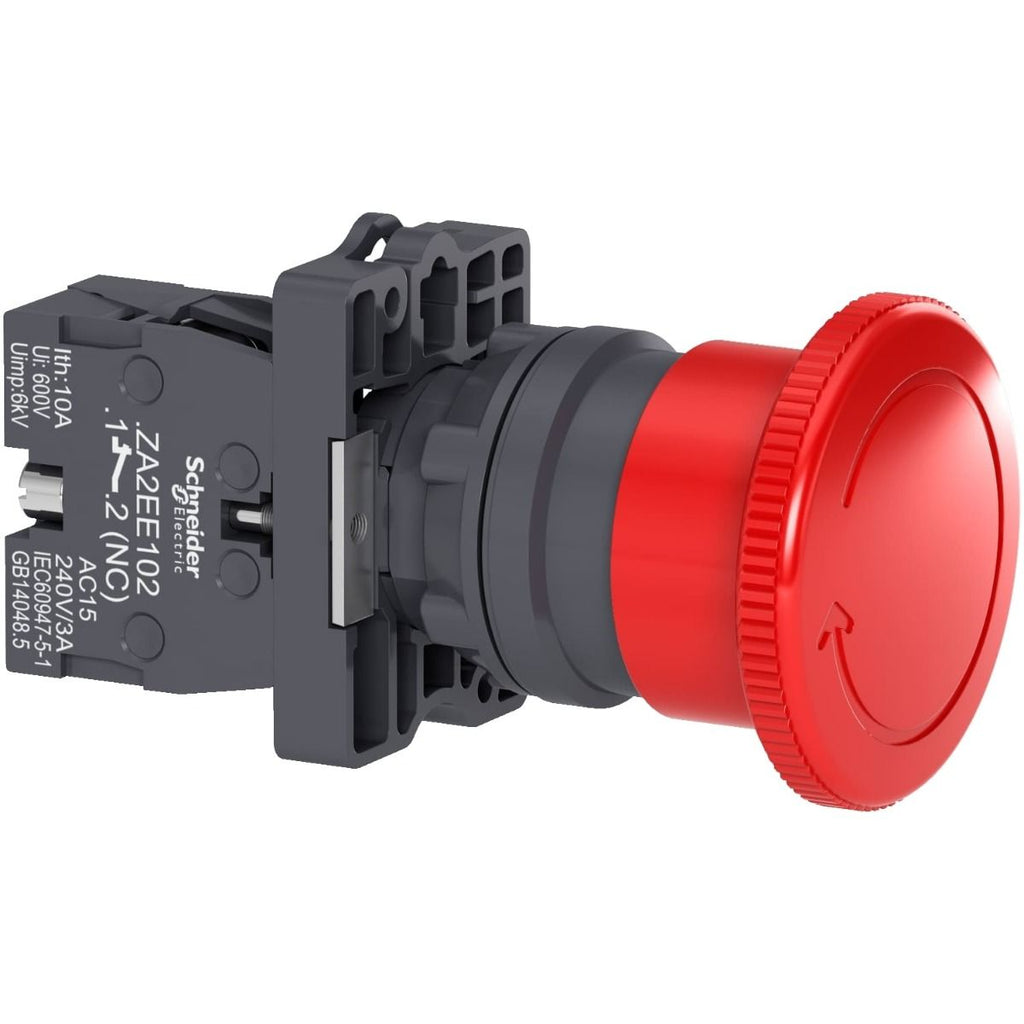

Complete emergency switching off push-button |
| Device short name |
XA2 |
| bezel material |
Plastic |
| Mounting diameter |
22.5 mm |
| Complementary |
| Operating position |
Any position |
| Device mounting |
Fixing hole - diameter: 22 mm |
| Fixing center |
>= 30 x 40 mm (panel) - thickness: 1…5 mm |
| Shape of signaling unit head |
Round |
| Type of operator |
Turn to release |
| Reset |
Turn to release |
| Operator profile |
Red mushroom Ø 40 mm |
| Cap/operator or lens colour |
Red |
| Contacts type and composition |
1 NC |
| contact operation |
Slow-break |
| Positive opening |
With NC contact |
| Mechanical durability |
100000 cycles |
| Connections - terminals |
Screw clamp terminal, <= 2 x 1.5 mm² |
| Screw clamp terminal, <= 1 x 2.5 mm² |
| Screw clamp terminal, >= 1 x 0.5 mm² |
| Faston terminals, connection size: 6.3 mm |
| Tightening torque |
0.8 N.m |
| Short-circuit protection |
10 A gL fuse conforming to IEC 60269-1 |
| [Ui] rated insulation voltage |
600 V conforming to IEC 60947-1 |
| [Uimp] rated impulse withstand voltage |
6 kV conforming to IEC 60947-1 |
| [Ie] rated operational current |
3 A at 240 V, AC-15, A600 |
| 0.27 A at 250 V, DC-13, Q600 |
| Electrical durability |
500000 cycles, AC-15, 3 A at 230 V, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-4 |
| 500000 cycles, DC-13, 0.2 A at 110 V, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-4 |
| Electrical reliability |
Λ < 10exp(-8) at 24 V |
| height |
30 mm |
| Width |
42 mm |
| Depth |
74.2 mm |
| Net weight |
0.058 kg |
| Type of operator |
Mechanical latching |
| Environment |
| Protective treatment |
TC |
| Ambient air temperature for storage |
-40…70 °C |
| Ambient air temperature for operation |
-25…55 °C |
| Overvoltage category |
Class I conforming to IEC 536 |
| IP degree of protection |
IP65 conforming to IEC 60068-2-27 |
| IK degree of protection |
IK03 |
| standards |
IEC 60947-1 |
| GB 14048.1 |
| GB 14048.5 |
| IEC 60947-5-1 |
| IEC 60529 |
| product certifications |
CCC |
| CE |
| Vibration resistance |
10 gn (f= 40…500 Hz) conforming to IEC 60068-2-6 |
| Shock resistance |
70 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
