Description
| Range of product | Harmony XA2 |
|---|---|

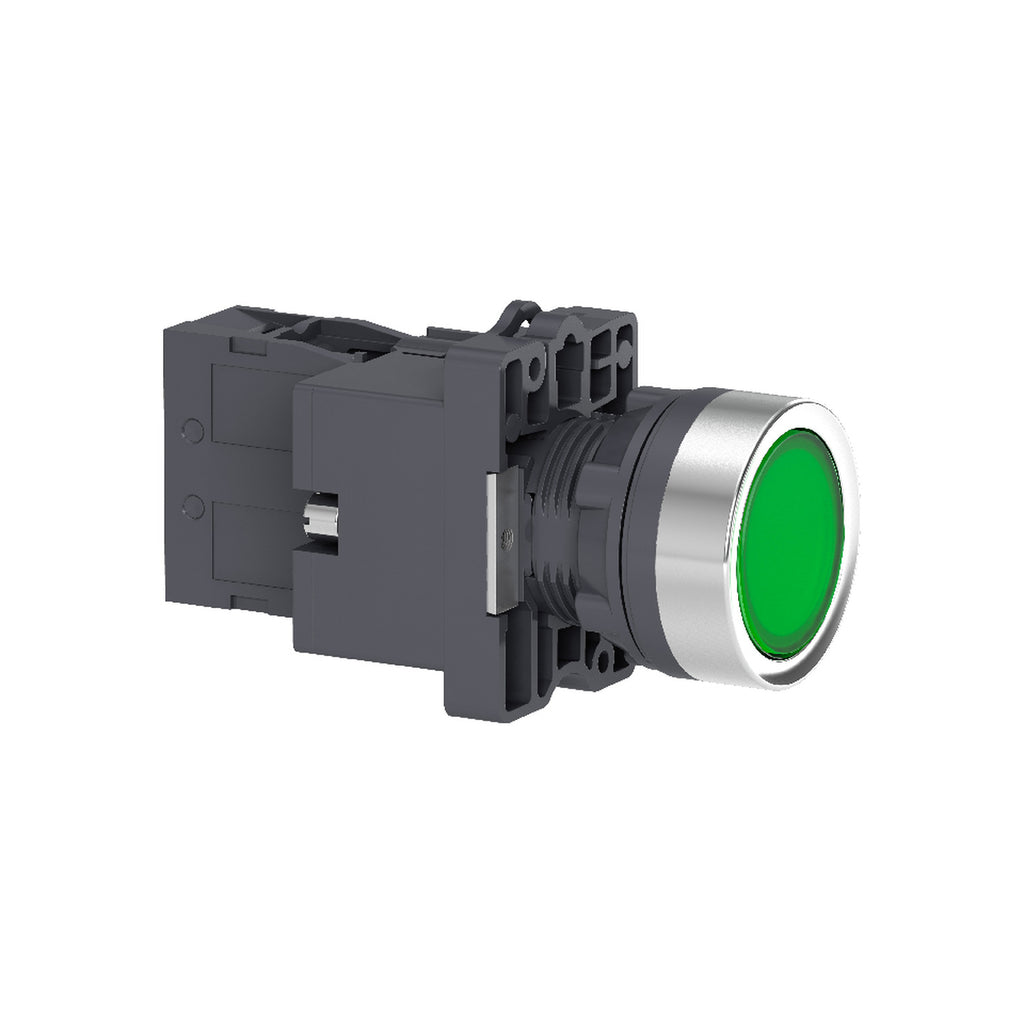

| Product or component type | Complete illuminated push-button |
| Device short name | XA2 |
| Device presentation | Complete product |
| Component name | XA2E |
| Bezel material | Plastic |
| Mounting diameter | 22.5 mm |
| Sale per indivisible quantity | 1 |
|---|---|
| Protective treatment | TC |
| Operating position | Any position |
| Fixing center | >= 30 x 40 mm (panel) - thickness: 1…5 mm |
| Fixing mode | Fixing nut recommended torque: 2.2 N.m (Us +/- 10 %) |
| Shape of signaling unit head | Round |
| Type of operator | spring return |
| Operator profile | Green flush |
| Contacts type and composition | 1 NO |
| Contact operation | Slow-break |
| Mechanical durability | 1500000 cycles |
| Connections - terminals | Screw clamp terminals, clamping capacity: 2 x 1.5 mm² Screw clamp terminals, clamping capacity: 1 x 2.5 mm² Faston terminals, connection size: 6.3 mm Screw clamp terminals, clamping capacity: 1 x 0.5 mm² |
| Tightening torque | 0.8 N.m |
| Short-circuit protection | 10 A gL fuse conforming to IEC 60269-1 |
| [Ith] conventional free air thermal current | 10 A |
| [Ui] rated insulation voltage | 600 V conforming to IEC 60947-4-1 |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to IEC 60947-1 |
| [Ie] rated operational current | 0.27 A at 250 V, DC-13, Q600 3 A at 240 V, AC-15, A600 |
| Electrical durability | 500000 cycles, DC-13, 0.2 A at 110 V, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-4 500000 cycles, DC-13, 3 A at 230 V, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-4 |
| Signalling type | Steady |
| Light source | LED |
| Bulb base | BA 9s |
| [Us] rated supply voltage | 24 V AC/DC 50/60 Hz |
| Supply voltage limits | 19…26 V AC/DC |
| Current consumption | < 20 mA |
| Service life | 10000 h |
| Width | 30 mm |
| Height | 42 mm |
| Depth | 74.5 mm |
| Product weight | 0.056 kg |
| Cap/operator or lens colour | Green |
| Type of operator | Spring return |
| [Us] rated supply voltage | 24 V |
