| Range |
Miluz |
| Product or component type |
Switch |
| Main colour tint |
White |
| Device presentation |
Module |
| Device mounting |
Flush |
| Colour tint |
White (WE) |
| Type of packing |
Plastic bag |
| Switch function |
Intermediate |
| Ambient air temperature for operation |
-5…40 °C |
| Number of rocker |
2 |
| Local signalling |
Without pilot light |

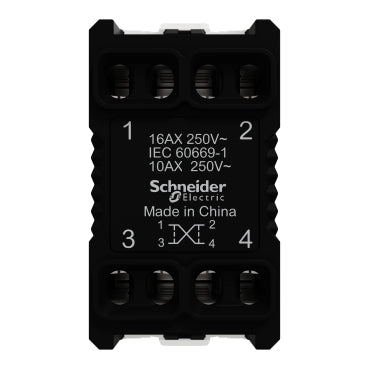

| Marking |
1 - 2 - 3 - 4 |
| Rated current |
10 AX |
| 16 AX |
| [Ue] rated operational voltage |
250 V AC |
| Load type |
Resistive load |
| Fluorescent load |
| Inductive lamp |
| Material |
PC (polycarbonate): actuator |
| PC (polycarbonate): dolly |
| PC (polycarbonate): base cover |
| PC (polycarbonate): base |
| Brass and copper alloy: terminals |
| Silver alloy: contact |
| Number of modules |
1 module |
| fixing mode |
Click-in |
| Connections - terminals |
Screw-clamp terminals |
| Cable cross section |
1.5 mm² |
| 2.5 mm² |
| 4 mm² |
| Cable stiffness |
Flexible |
| Rigid |
| Solid stranded |

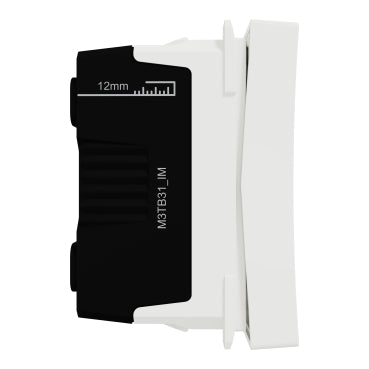

| Wire stripping length |
12.0 mm |
| Height * Width * Depth |
45 * 22.25 * 32.50 mm |
| Projecting depth |
20.2 mm |
| Net weight |
0.0275 kg |
| Standards |
IEC 60669-1 |
| Product certifications |
IEC |
| IP degree of protection |
IP20 |
