| Main |
| Range of product |

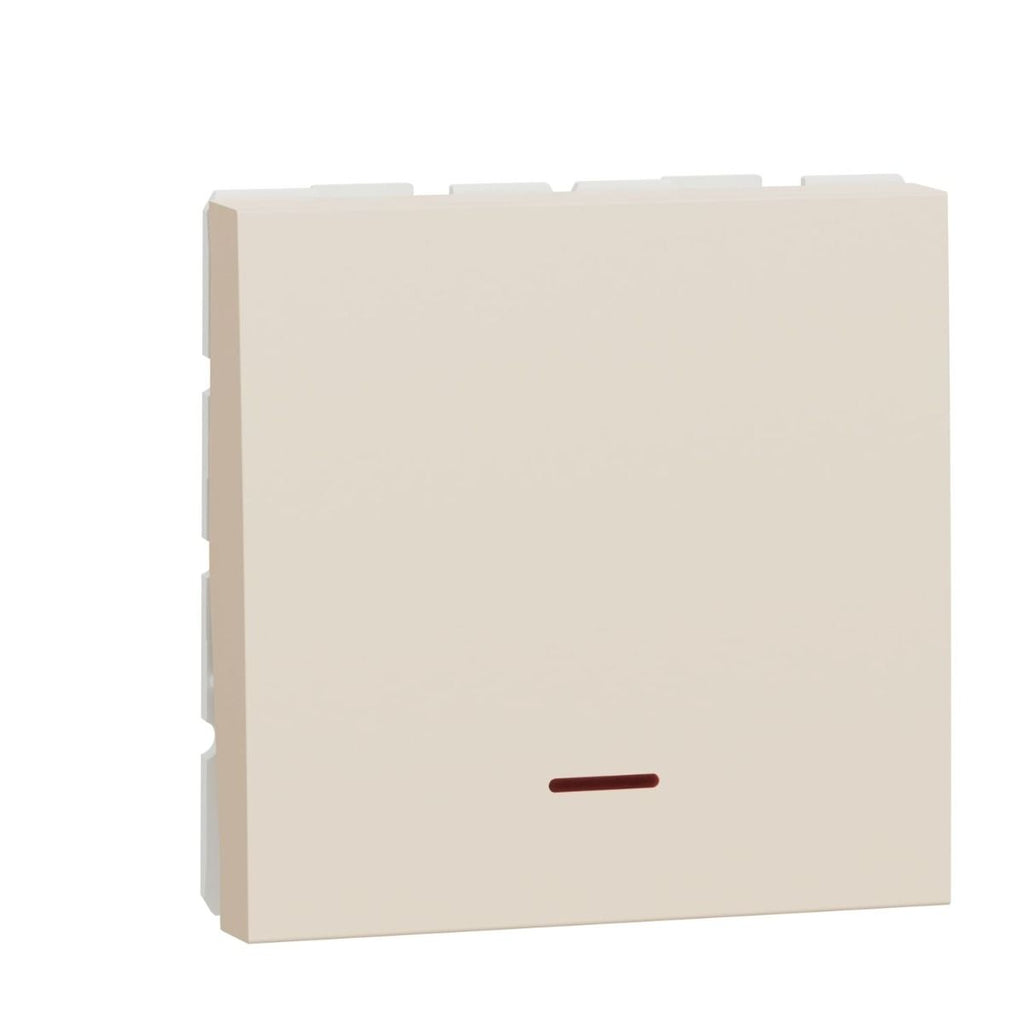

New Unica |
| Product or component type |
Switch |
| Device presentation |
Mechanism |
| Technology type |
Electromechanical |
| Switch function |
2-pole 1-way |
| Number of rocker |
1 |
| Device application |
Light control |
| Provided equipment |
LED |
| Colour tint |
Beige (RAL 1013) |
| Type of packing |
Flow-pack |
| Complementary |
| Rated current |
32 A |
| [Ue] rated operational voltage |
250 V |
| Network type |
AC |
| Network frequency |
50/60 Hz |
| Electrical durability |
10000 cycles, cos phi = 0.6 |
| Insulation resistance |
> 5 MOhm at 500 V |
| Dielectric strength |
2000 V |
| Minimum load breaking capacity |
200 operations 1.25 In and 1.1 Un, cos phi = 0.3 |
| Condition of use |
Indoor |
| Opening distance |
> 3 mm |
| Actuator |
Rocker |
| Number of modules |
2 modules |
| Pilot light |
LED, colour: amber, current consumption: 1 mA, temperature rise: 15 °C |
| Connections - terminals |
Screw terminals |
| Cable cross section |
0…6 mm² flexible cable |
| 0…6 mm² rigid cable |
| Material |
ASA + PC: mechanism cover |
| ABS (acrylonitrile butadiene-styrene): mechanism cover |
| Surface finish |
Glossy |
| specific treatment - integrated within the material |
Untreated |
| Fixing mode |
Clip-in |
| Width |
45 mm |
| Height |
45 mm |
| Depth |
41 mm |
| Embedding depth |
30 mm |
| Net weight |
0.039 kg |
| Ambient air temperature for operation |
-5…40 °C |
| Ambient air temperature for storage |
-5…50 °C |
| Standards |
EN 60669-1 |
| LV directive |
| EMC directive |
| Product certifications |
CE |
| AENOR |
| EAC |
| NF |
| VDE |
| resistance to chemical agents |
Resistant to alcohol (70 %) |
| Resistant to alcohol (96 %) |
| Resistant to A-Lactic Acid |
| Resistant to diluted quaternary ammonium |
