| Main |
| Range |
New Unica |
| Product or component type |

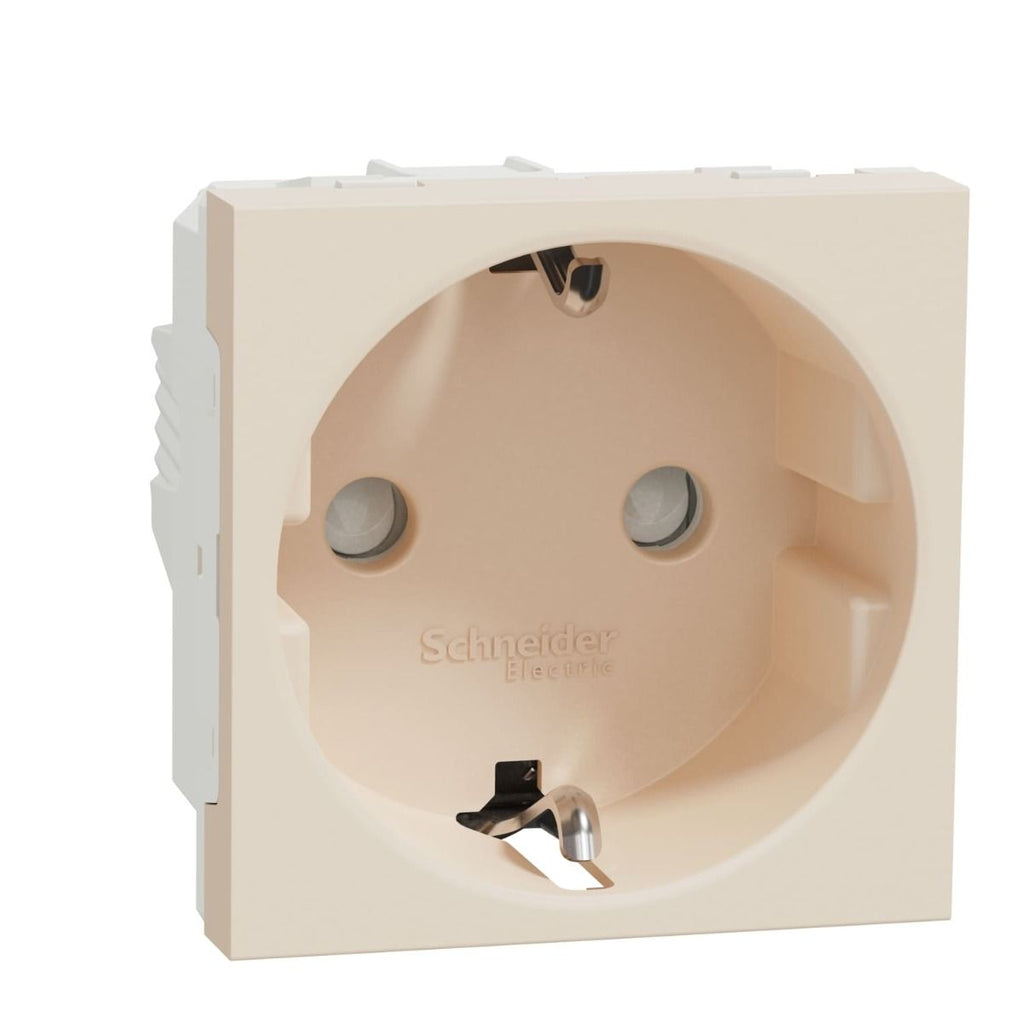

Socket-outlet |
| Device presentation |
Mechanism with central plate |
| Device mounting |
Flush |
| Socket number |
1 |
| Outlet poles configuration |
2P + E |
| outlet standard |
Schuko |
| Outlet standard description |
Side earth |
| Ground lug position |
90° ground lug |
| Rated current |
16 A |
| Complementary |
| Device application |
Power supply |
| Cover type |
With shutter |
| [Ue] rated operational voltage |
250 V |
| Network type |
AC |
| Network frequency |
50/60 Hz |
| Number of modules |
2 modules |
| Fixing mode |
Clip-in |
| Colour tint |
Beige (RAL 1013) |
| Connections - terminals |
Screw terminals |
| Cable cross section |
0…4 mm² cable(s), 2 - cable stiffness: flexible |
| 0…4 mm² - cable stiffness: rigid |
| Minimum load breaking capacity |
100 operations 1.25 In and 1.1 Un, cos phi = 0.6 |
| Electrical durability |
10000 cycles, cos phi = 0.8 |
| Insulation resistance |
> 5 MOhm at 500 V |
| Dielectric strength |
2000 V |
| Material |
PC: mechanism cover |
| PC (polycarbonate) GF10 FR: casing |
| Surface finish |
Glossy |
| Quantity per set |
Set of 1 flow-pack |
| Standards |
IEC 60884-1 |
| DIN VDE 0620-1 |
| product certifications |
EAC |
| VDE |
| Embedding depth |
30 mm |
| Depth |
40 mm |
| Width |
45 mm |
| height |
45 mm |
| Net weight |
0.035 kg |
| Surface treatment |
Untreated |
| Resistance to chemical agents |
Resistant to alcohol (70 %) |
| Resistant to alcohol (96 %) |
| Resistant to A-Lactic Acid |
| Resistant to diluted quaternary ammonium |
| Resistant to diluted bleach |
| Resistant to diluted ammonia |
| Resistant to soapy water |
| Resistant to crystal cleaner |
| Resistant to hydrogen peroxide 10 volumes |
| Resistant to hexane |
| Environment |
| Ambient air temperature for operation |
-5…35 °C |
| Ambient air temperature for storage |
-5…50 °C |
| IK degree of protection |
IK01 |
| IP degree of protection |
IP21D |
| Environmental characteristic |
Liquid soap |
| Acetone |
| Oil |
| UV resistant |
| Window-cleaning fluid |
| Bleach |
| Petrol |
| Alcohol |
