| Main |
| Range |
New Unica |
| Product or component type |

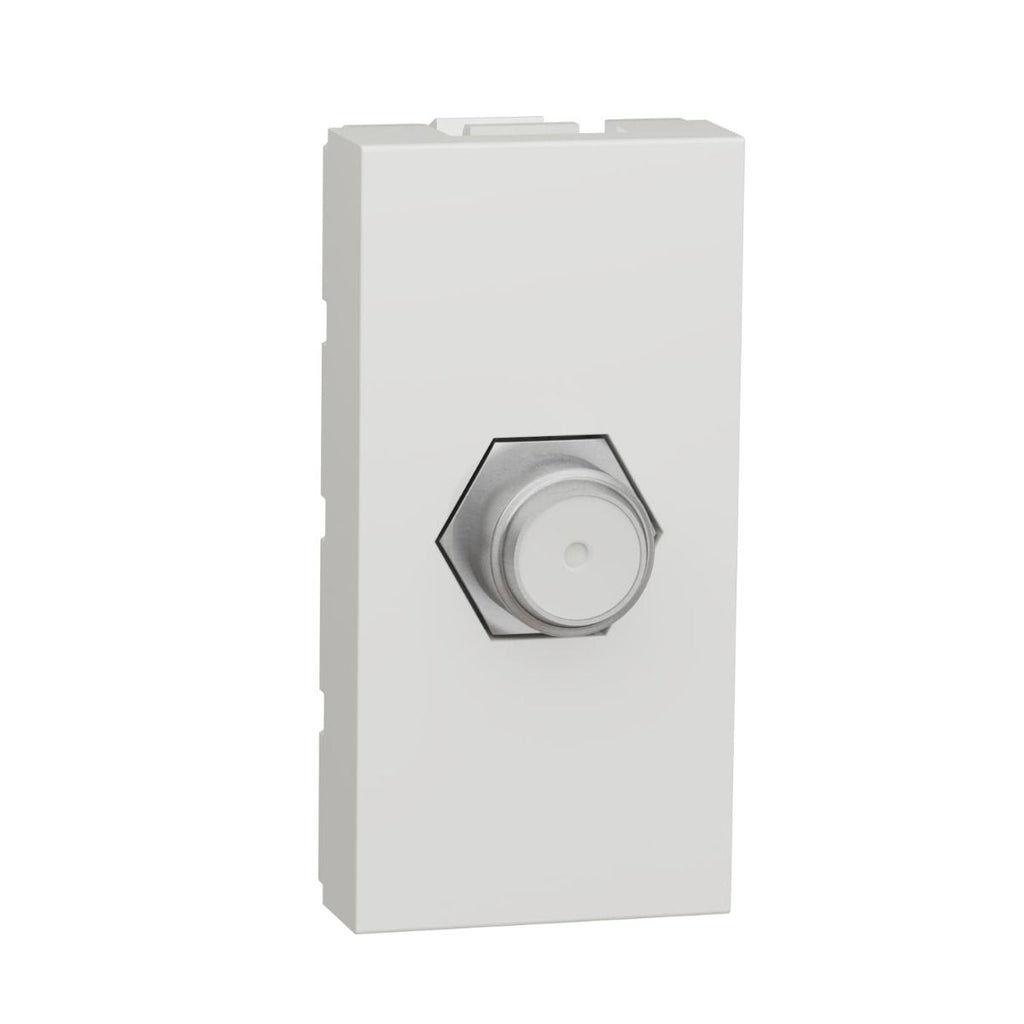

TV socket |
| Device application |
Connection |
| Device presentation |
Mechanism |
| Colour tint |
White (RAL 9003) |
| Complementary |
| TV connector |
F connectors |
| Number of modules |
1 module |
| Material |
Thermoplastic ABS-UV stabilised: mechanism cover |
| Surface finish |
Glossy |
| Surface treatment |
Untreated |
| Fixing mode |
Clip-in |
| Depth |
35 mm |
| Width |
22.5 mm |
| height |
45 mm |
| Embedding depth |
18 mm |
| Net weight |
0.013 kg |
| Ambient air temperature for operation |
5…45 °C |
| Ambient air temperature for storage |
-5…50 °C |
| Resistance to chemical agents |
Resistant to alcohol (70 %) |
| Resistant to alcohol (96 %) |
| Resistant to A-Lactic Acid |
| Resistant to diluted quaternary ammonium |
| Resistant to diluted bleach |
| Resistant to diluted ammonia |
| Resistant to soapy water |
| Resistant to crystal cleaner |
| Resistant to hydrogen peroxide 10 volumes |
| Resistant to hexane |
| Environment |
| IK degree of protection |
IK04 |
| IP degree of protection |
IP2XC |
