| Main |
| Range of product |

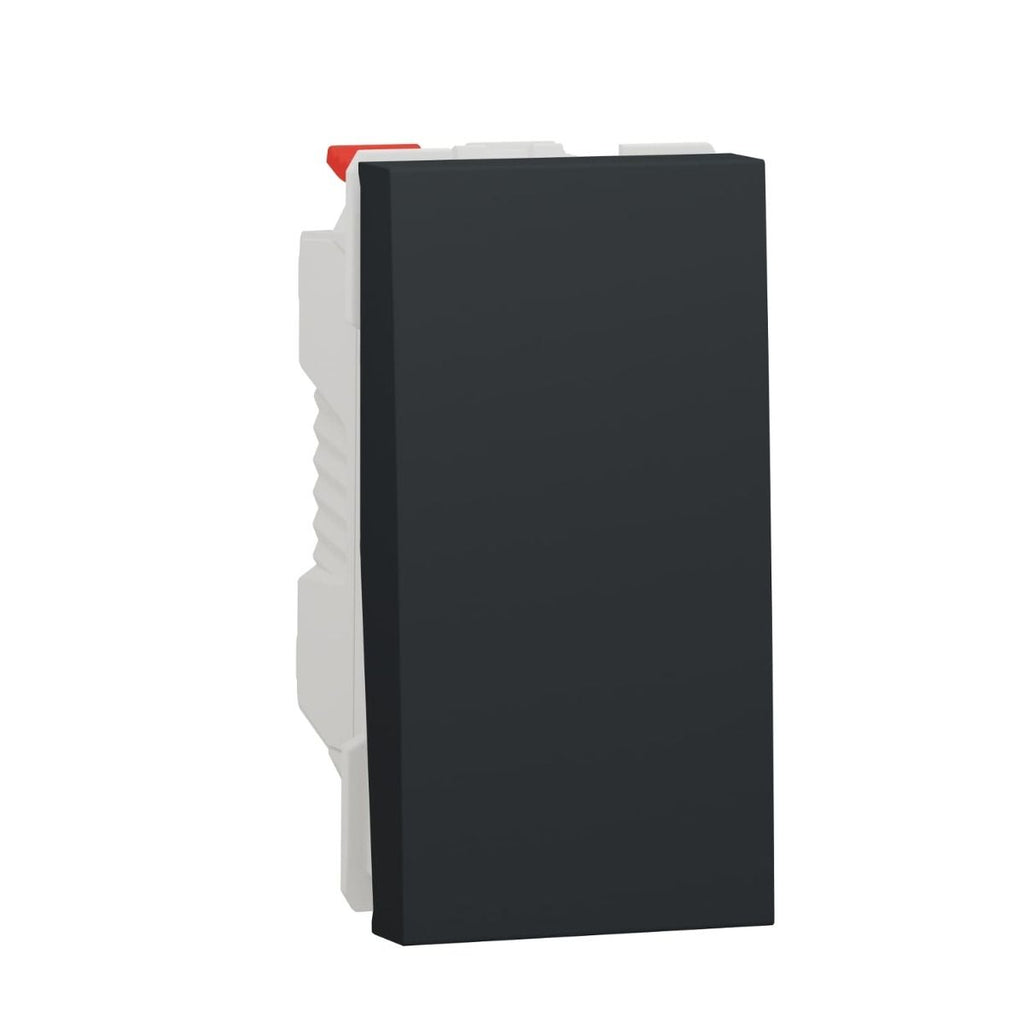

New Unica |
| Product or component type |
Switch |
| Device presentation |
Mechanism |
| Technology type |
Electromechanical |
| Switch function |
1-pole 2-way |
| Number of rocker |
1 |
| Device application |
Light control |
| Colour tint |
Anthracite (RAL 7021) |
| Quantity per set |
1 |
| Type of packing |
Flow-pack |
| Complementary |
| Rated current |
10 AX |
| [Ue] rated operational voltage |
250 V |
| Network type |
AC |
| Network frequency |
50/60 Hz |
| Electrical durability |
20000 cycles, cos phi = 0.6 |
| Insulation resistance |
> 5 MOhm at 500 V |
| Dielectric strength |
2000 V |
| Minimum load breaking capacity |
200 operations 1.25 In and 1.1 Un, cos phi = 0.3 |
| Opening distance |
> 3 mm |
| Actuator |
Rocker |
| Number of modules |
1 module |
| Connections - terminals |
Screwless terminals |
| Cable cross section |
0…2.5 mm² rigid cable |
| 0…2.5 mm² flexible cable |
| Material |
Thermoplastic ABS-UV stabilised: mechanism rocker |
| PC (polycarbonate) GF10 FR: casing |
| CuZn37: terminals |
| PBT (polybutylene terephthalate) GF30: release button |
| Marking |
Without marking |
| Surface finish |
Glossy |
| specific treatment - integrated within the material |
Painted |
| Fixing mode |
Clip-in |
| Width |
22.5 mm |
| Height |
45 mm |
| Depth |
34.25 mm |
| Embedding depth |
21.15 mm |
| Net weight |
0.0163 kg |
| Ambient air temperature for operation |
-5…40 °C |
| Ambient air temperature for storage |
-5…50 °C |
| Standards |
EN 60669-1 |
| LV directive |
| EMC directive |
| Product certifications |
AENOR |
| NF |
| VDE |
| EAC |
| CE |
| resistance to chemical agents |
Resistant to alcohol (70 %) |
| Resistant to alcohol (96 %) |
| Resistant to A-Lactic Acid |
| Resistant to diluted quaternary ammonium |
| Resistant to diluted bleach |
| Resistant to diluted ammonia |
| Resistant to soapy water |
| Resistant to crystal cleaner |
| Resistant to hydrogen peroxide 10 volumes |
| Resistant to hexane |
| Environment |
| IP degree of protection |
IP4X |
| IK degree of protection |
IK04 |
| Environmental characteristic |
Oil |
| UV resistant |
| Acetone |
| Liquid soap |
| Window-cleaning fluid |
| Petrol |
| Alcohol |
| Bleach |
