| Main |
| Range of product |
Easy Harmony XA2 |
| Product or component type |

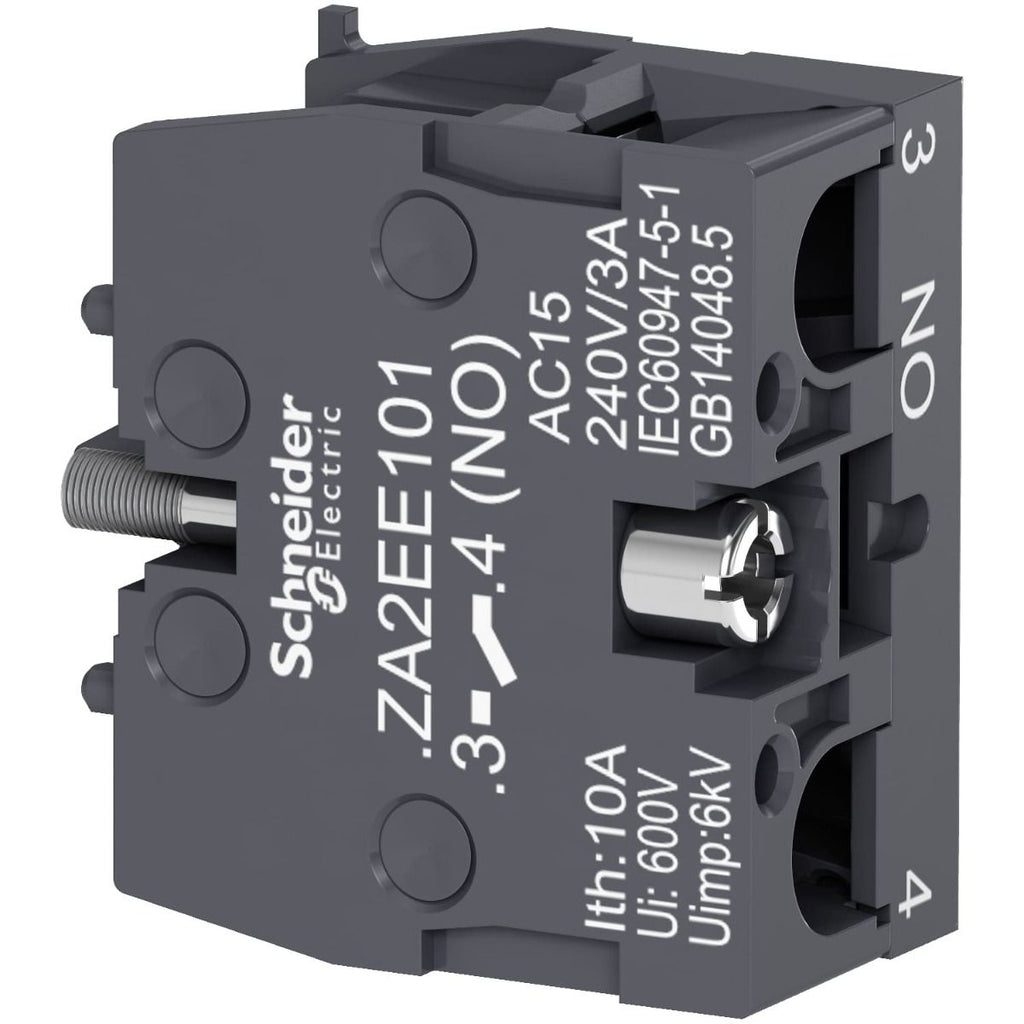

Contact block |
| Device short name |
ZA2E |
| Complementary |
| contact operation |
Slow-break |
| Contact block type |
Single |
| contacts usage |
Standard contacts |
| Positive opening |
Without |
| Mechanical durability |
1500000 cycles |
| Connections - terminals |
, <= 2 x 1.5 mm² conforming to IEC 60947-1 |
| , <= 1 x 2.5 mm² conforming to IEC 60947-1 |
| , >= 1 x 0.5 mm² conforming to IEC 60947-1 |
| Faston terminals, connection size: 6.3 mm conforming to IEC 60947-1 |
| Tightening torque |
0.8 N.m |
| Contacts material |
Silver alloy (Ag/Ni) |
| Short-circuit protection |
10 A fuse type gL conforming to IEC 60269-1 |
| [Ith] conventional free air thermal current |
10 A conforming to IEC 60947-5-1 |
| [Ui] rated insulation voltage |
600 V (pollution degree 3) conforming to IEC 60947-1 |
| [Uimp] rated impulse withstand voltage |
6 kV conforming to IEC 60947-1 |
| [Ie] rated operational current |
2 A at 230 V, AC-15, A600 conforming to IEC 60947-5-1 |
| 0.2 A at 110 V, DC-13, Q600 conforming to IEC 60947-5-1 |
| Electrical durability |
500000 cycles, AC-15, 2 A at 230 V, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 |
| 500000 cycles, DC-13, 0.2 A at 110 V, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 |
| Contacts type and composition |
1 NO |
| Environment |
| Protective treatment |
TC |
| IP degree of protection |
IP20 conforming to IEC 60529 |
| standards |
IEC 60947-1 |
| IEC 60947-5-4 |
| IEC 60529 |
| IEC 60947-5-1 |
| product certifications |
CE |
| CCC |
| Ambient air temperature for storage |
-40…70 °C |
| Ambient air temperature for operation |
-25…55 °C |
