Description
|
Main |
|
|
Range |
Miluz |
|
Product or component type |

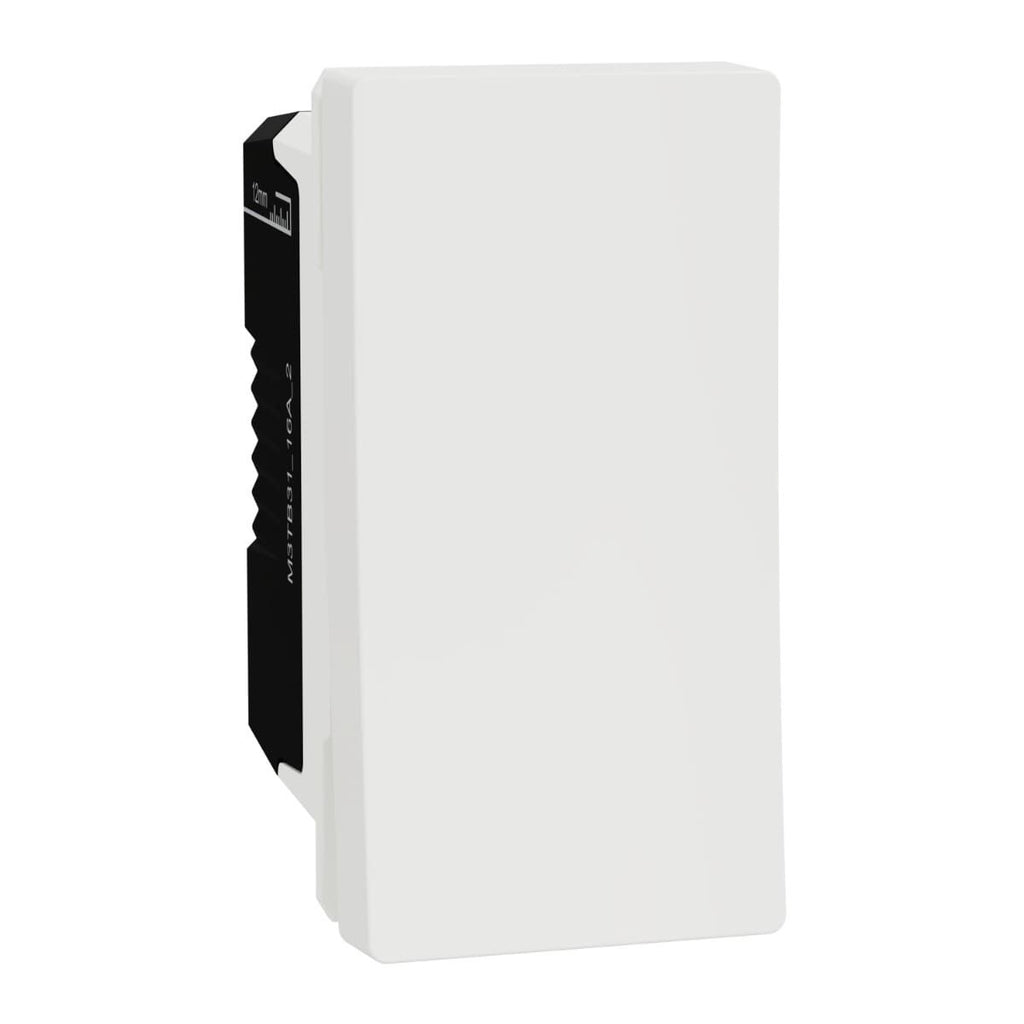

Switch |
|
Complementary |
|
|
device presentation |
Module |
|
Device mounting |
Flush |
|
Type of packing |
Plastic bag |
|
Switch function |
2-way |
|
ambient air temperature for operation |
-5…40 °C |
|
Number of rocker |
2 |
|
local signalling |
Without pilot light |
|
Marking |
COM |
|
L1 |
|
|
L2 |
|
|
Rated current |
16 AX |
|
[Ue] rated operational voltage |
250 V AC |
|
Load type |
Resistive load: 200 W |
|
Fluorescent load |
|
|
Inductive lamp |
|
|
Material |
PC (polycarbonate): actuator |
|
PC (polycarbonate): dolly |
|
|
PC (polycarbonate): base cover |
|
|
PC (polycarbonate): base |
|
|
Brass and copper alloy: terminals |
|
|
Silver alloy: contact |
|
|
Number of modules |
1 module |
|
Fixing mode |
Click-in |
|
Connections - terminals |
Screw-clamp terminals |
|
Cable cross section |
1.5 mm² |
|
2.5 mm² |
|
|
4 mm² |
|
|
Cable stiffness |
Flexible |
|
Rigid |
|
|
Solid stranded |
|
|
Wire stripping length |
12.0 mm |
|
height |
45 mm |
|
Width |
22.25 mm |
|
Depth |
33.37 mm |
|
Projecting depth |
21.3 mm |
|
Net weight |
0.0226 kg |
|
Environment |
|
|
Standards |
IEC 60669-1 |
|
product certifications |
IEC |
|
IP degree of protection |
IP20 |
