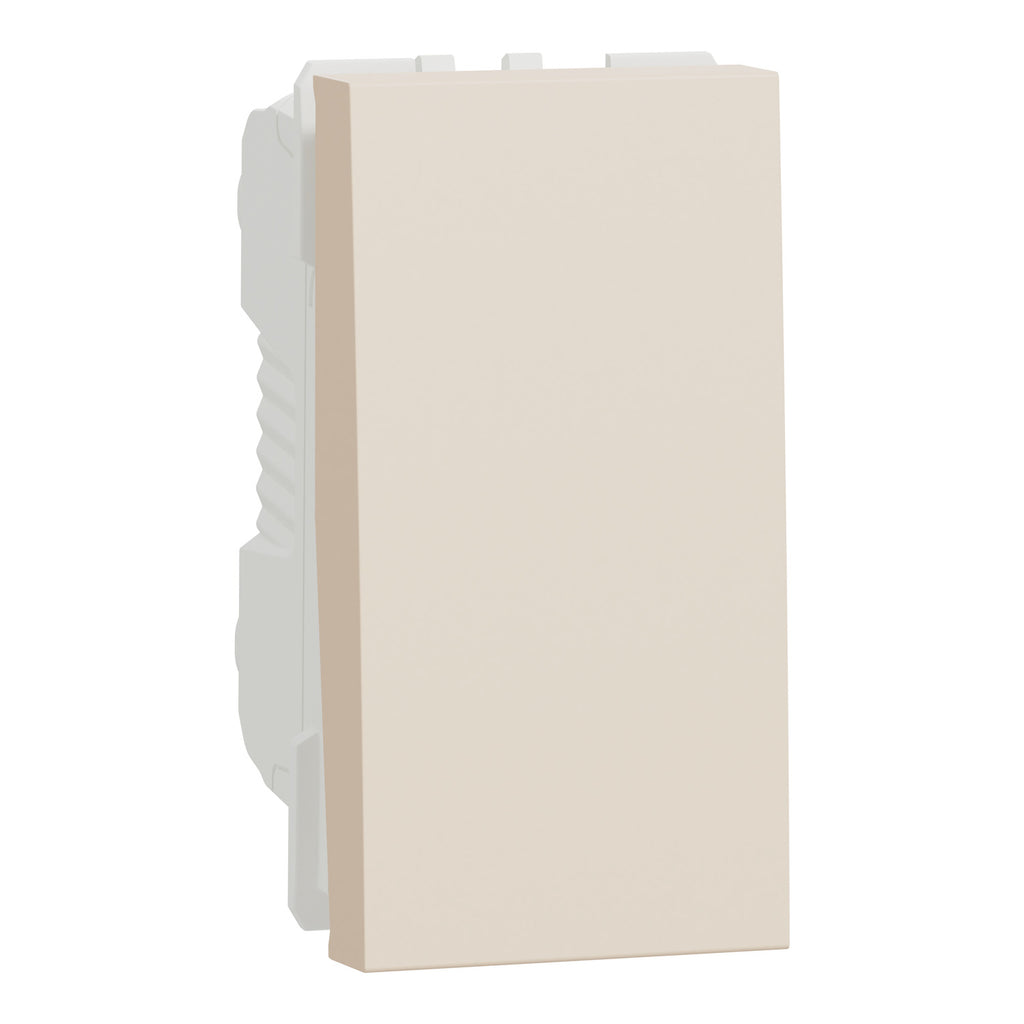

Description
| Range of product | New Unica |
|---|---|
| Product or component type | Switch |
| Device presentation | Mechanism with cover plate |
| Technology type | Electromechanical |
| Switch function | 1-pole 2-way |
| Number of rocker | 1 |
| Device application | Light control |
| Colour tint | Beige (RAL 1013) |
| Type of packing | Flow-pack |
| Rated current | 16 A 16 AX |
|---|---|
| [Ue] rated operational voltage | 250 V |
| Network type | AC |
| Network frequency | 50/60 Hz |
| Electrical durability | 5000 cycles 20000 cycles, cos phi = 0.6 |
| Insulation resistance | > 5 MOhm at 500 V |
| Dielectric strength | 2000 V |
| Minimum load breaking capacity | 200 operations 1.25 In and 1.1 Un, cos phi = 0.3 |
| Condition of use | Indoor |
| Opening distance | > 3 mm |
| Actuator | Rocker |
| Number of modules | 1 module |
| Connections - terminals | Screw terminals |
| Cable cross section | 0…4 mm² rigid cable 0…4 mm² flexible cable |
| Material | ASA + PC: mechanism cover ABS (acrylonitrile butadiene-styrene): mechanism cover |
| Surface finish | Glossy |
| specific treatment - integrated within the material | Untreated |
| Device mounting | Flush |
| fixing mode | Clip-in |
| Width | 22.5 mm |
| Height | 45 mm |
| Depth | 34.25 mm |
| Embedding depth | 21.15 mm |
| Product weight | 0.0218 kg |
| Ambient air temperature for operation | -5…40 °C |
| Ambient air temperature for storage | -5…50 °C |
| Standards | EN 60669-1 LV directive EMC directive |
| Product certifications | CE AENOR EAC NF VDE |
| resistance to chemical agents | Resistant to alcohol (70 %) Resistant to alcohol (96 %) Resistant to A-Lactic Acid Resistant to diluted quaternary ammonium Resistant to diluted bleach Resistant to diluted ammonia Resistant to soapy water Resistant to crystal cleaner Resistant to hydrogen peroxide 10 volumes Resistant to hexane |
