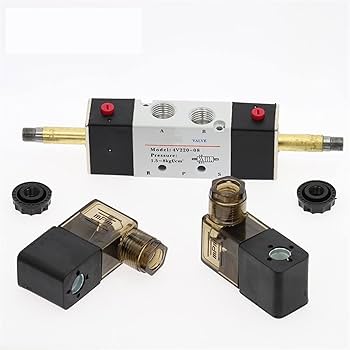

Pneumatic Solenoid Valve, 5 Way 2 Position (5/2), Without Coil (Dual Coil), Model 4V

• Ports: 5

• Position: 2 (Controls air outlets A and B with two electrical signals)

• Working Pressure: 0.15 – 0.8 MPa (1.5 – 8 bar)

• Working Temperature: 5 – 50°C

• Electrical Control: Supports dual coils (two electrical signals)

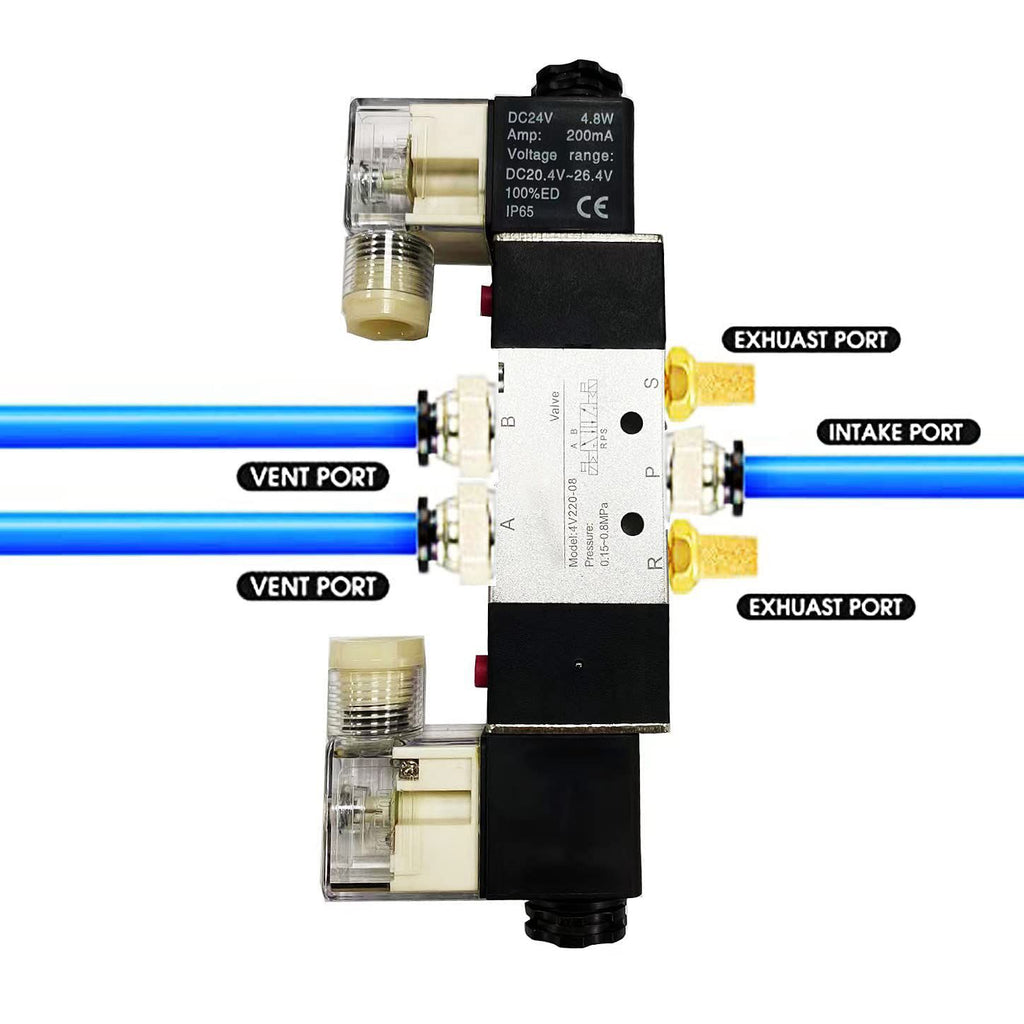

Valve Port Identification:

• A: Air outlet

• B: Air outlet

• P: Air inlet

• R / S: Exhaust ports

• Brand Names: STNC, JXPC, E.MC, AIRFIT
• Country of Manufacture: Made in China



Note:
Solenoid coil is sold separately.
For purchase, click here:  Pneumatic Solenoid Coil , suitable for use with 5/2 and 3/2 pneumatic valves
