Pneumatic Solenoid Valve Japanese style 5/2 - With 2 coil 24DC / Model : FY-D
Pneumatic Solenoid Valve Japanese style 5/2 - With 2 coil 24DC / Model : FY-D
Pneumatic Solenoid Valve Japanese style 5/2 - With 2 coil 24DC / Model : FY-D
Pneumatic Solenoid Valve Japanese style 5/2 - With 2 coil 24DC / Model : FY-D
Roll over image to zoom in Click on image to zoom
Pneumatic Solenoid Valve Japanese style 5/2 - With 2 coil 24DC / Model : FY-D
Pneumatic Solenoid Valve Japanese style 5/2 - With 2 coil 24DC / Model : FY-D
Pneumatic Solenoid Valve Japanese style 5/2 - With 2 coil 24DC / Model : FY-D
Pneumatic Solenoid Valve Japanese style 5/2 - With 2 coil 24DC / Model : FY-D

Pneumatic Solenoid Valve Japanese style 5/2 - With 2 coil 24DC / Model : FY-D

Save LE 900.54
Derhali
Size: m5
Price:
LE 354.57 LE 1,255.11

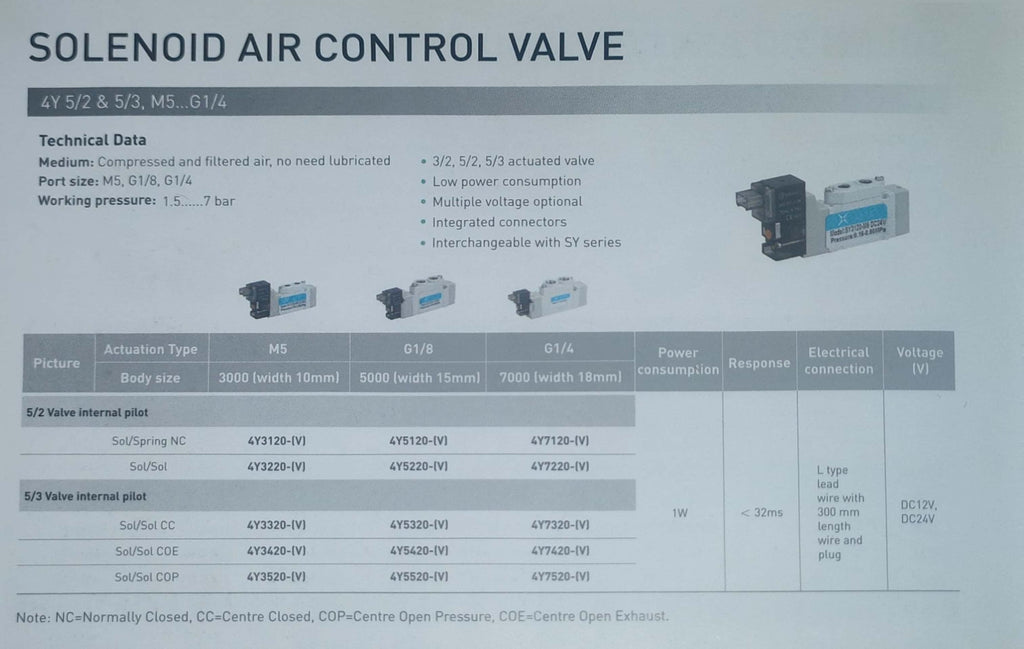

Description

  • Ports: 5

  • Position: 2 (Controls air outlets A and B with two electrical signals)

  • Port size: M5, G1/8, G1/4 (selectable according to requirement)

  • Working Pressure: 0.15 – 0.8 MPa (1.5 – 8 bar)

  • Working Temperature: 5 – 50°C

  • Electrical Control: With 2 coils (two 24V DC electrical signals)

Valve Port Identification:

  • A: Air outlet

  • B: Air outlet

  • P: Air inlet

  • R / S: Exhaust ports

  • Brand Names: STNC, JXPC, E.MC, AIRFIT
  • Country of Manufacture: Made in China
